Procedural 2D World Generation
Creating a procedurally generate 2D world for my next game. How I went from nothing to this, showing my experience with procedural world generation in incremental steps.
Motivation
My motivation for using procedural generation in Lost Oppai was quite simple: I dislike level/map design. So instead I designed an algorithm that designs maps for me :)
From Nothing To Something

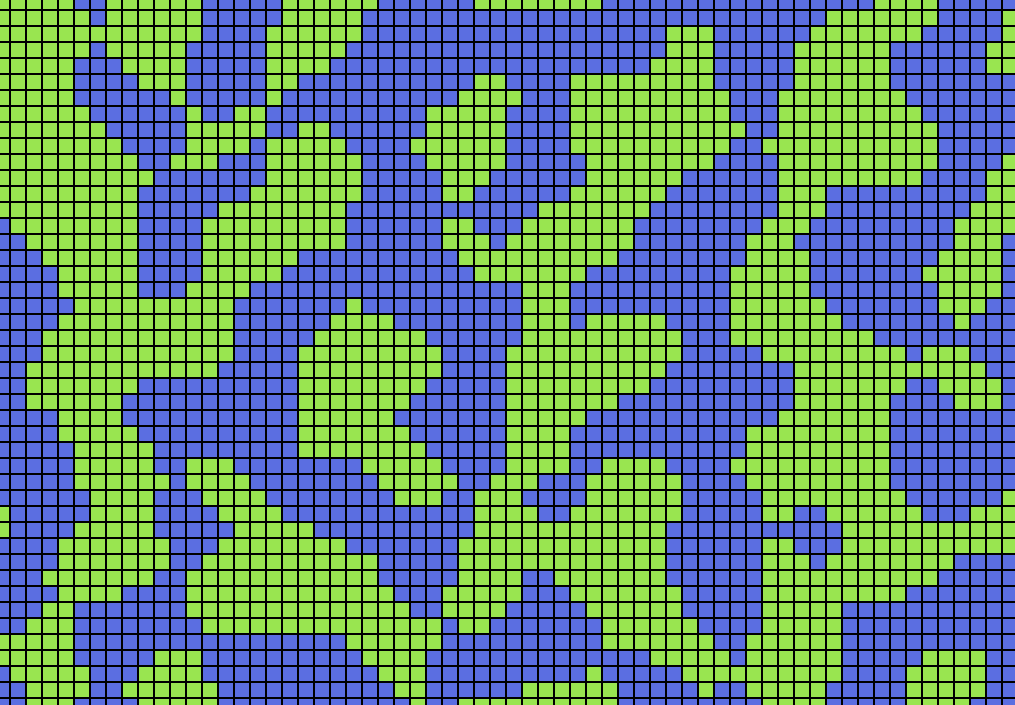

The very first thing I did was to create islands (water and grass tiles only). I used a simple perlin noise map to determine whether to place a water tile or a grass tile, nothing fancy.

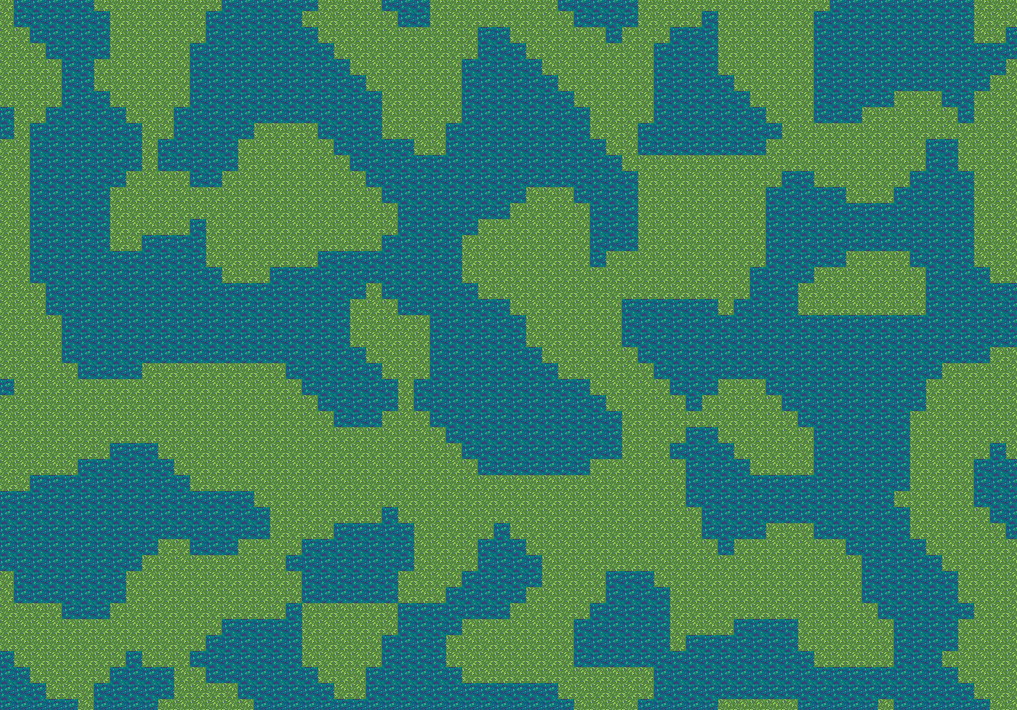

Then I got rid of those ugly placeholder tiles and used an actual tileset.

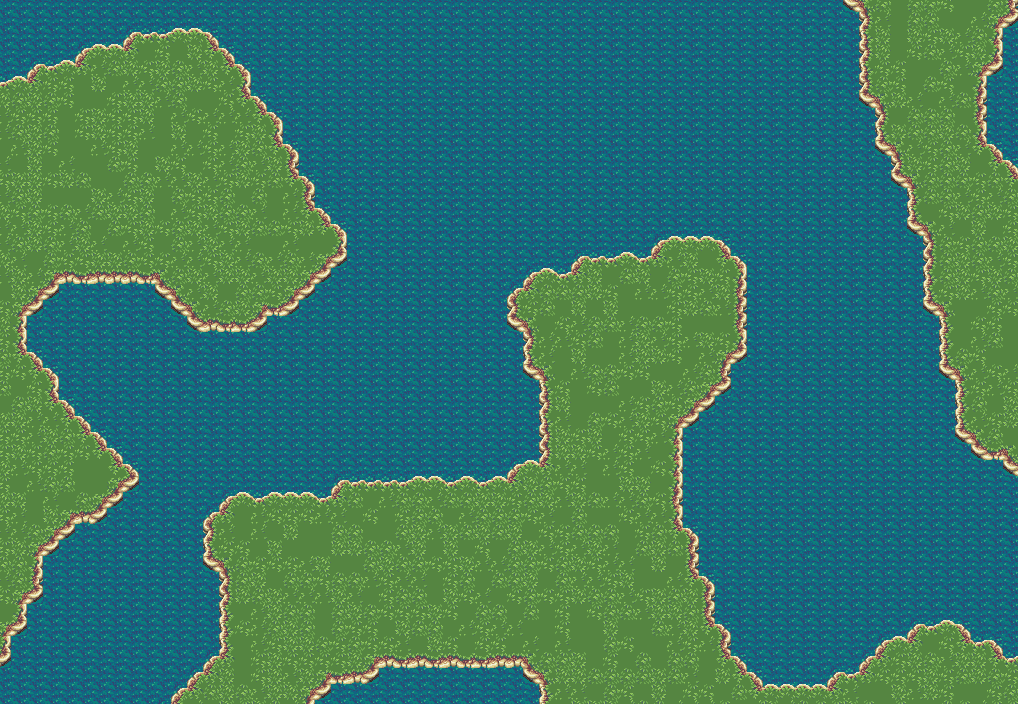

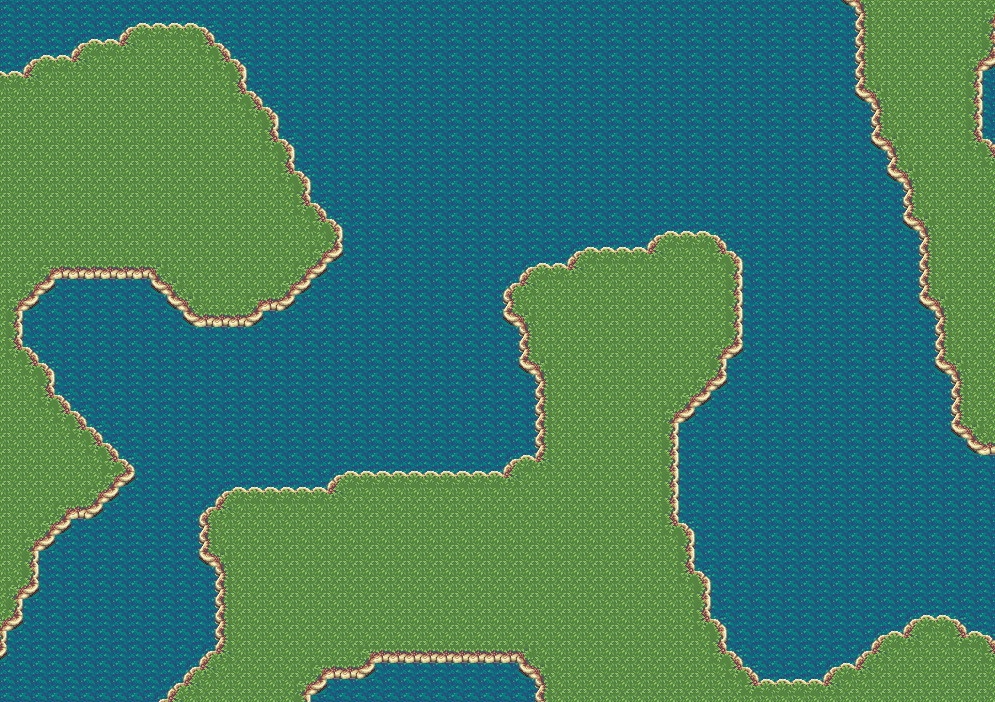

Much better, but the transition from water to grass just looks horrible. Next I implemented bitmasks to determine which tile to place based on the neighbhoring tile types. This isn't exactly hard, but if it's your first time dealing with bitmasks then it can a bit tricky.
After that I added a bit of variaty to the grass tiles by just randomly selecting any valid grass tiles from the tileset.
Player And Collisions

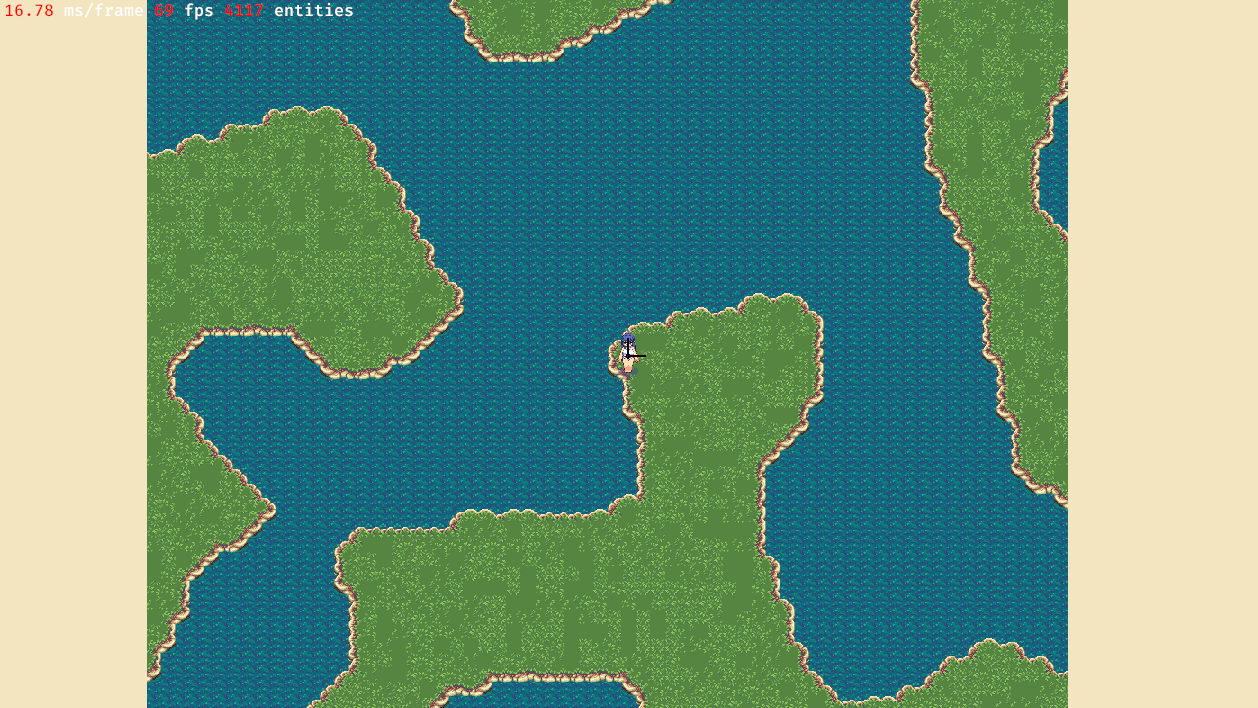

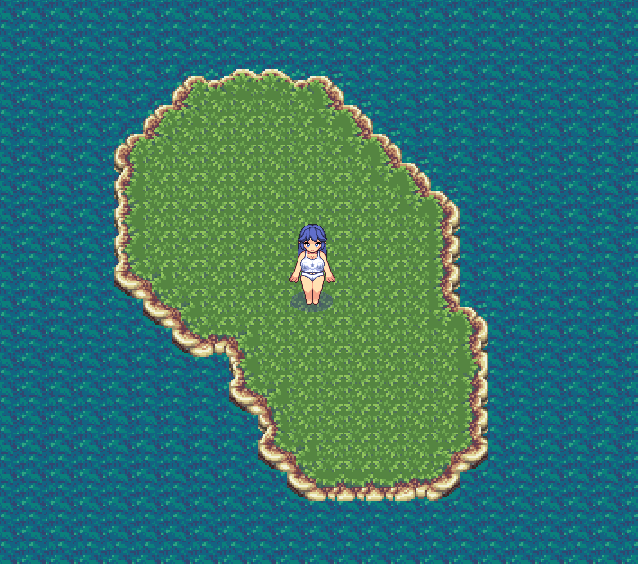

Okay, with a map somewhat resembling an actual game now I finally added the player character, this is a game afterall...

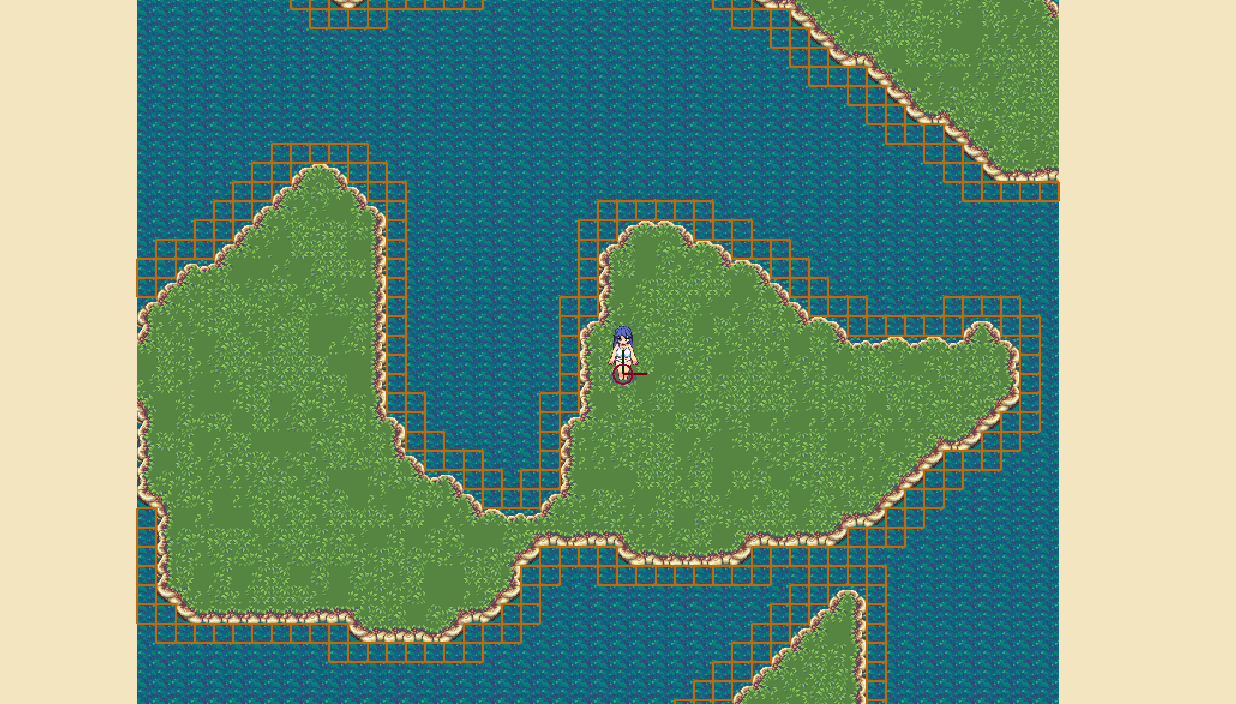

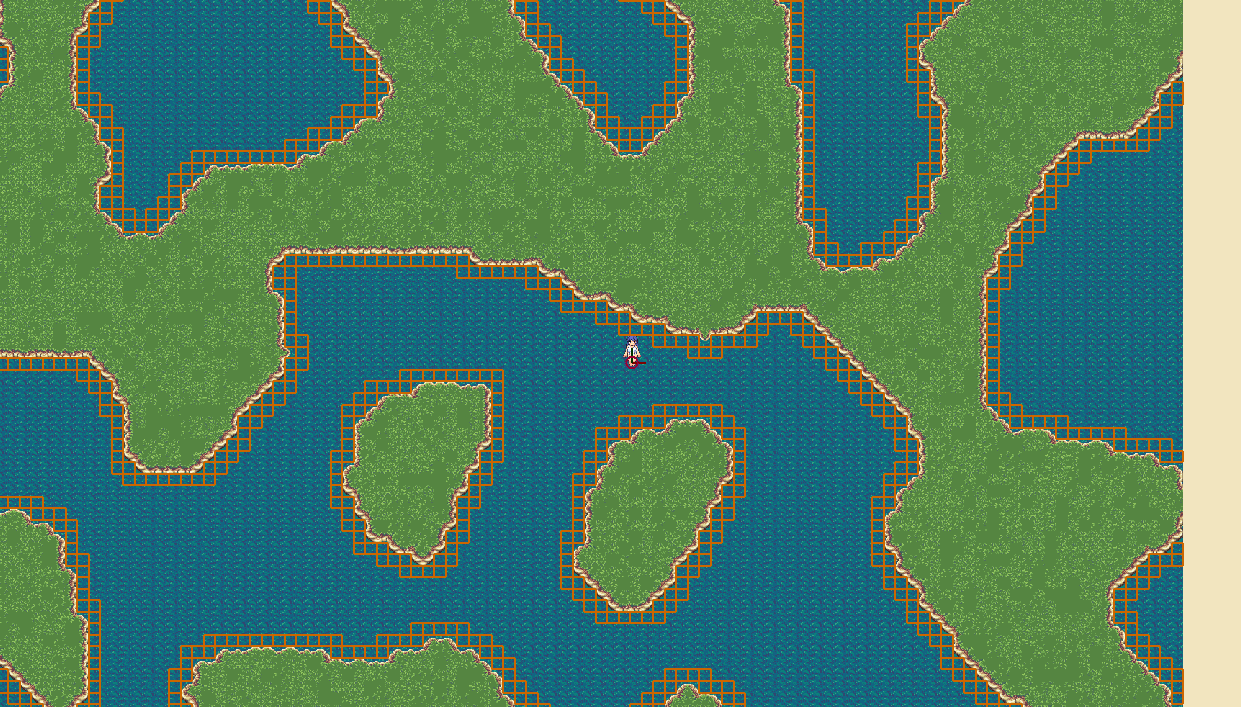

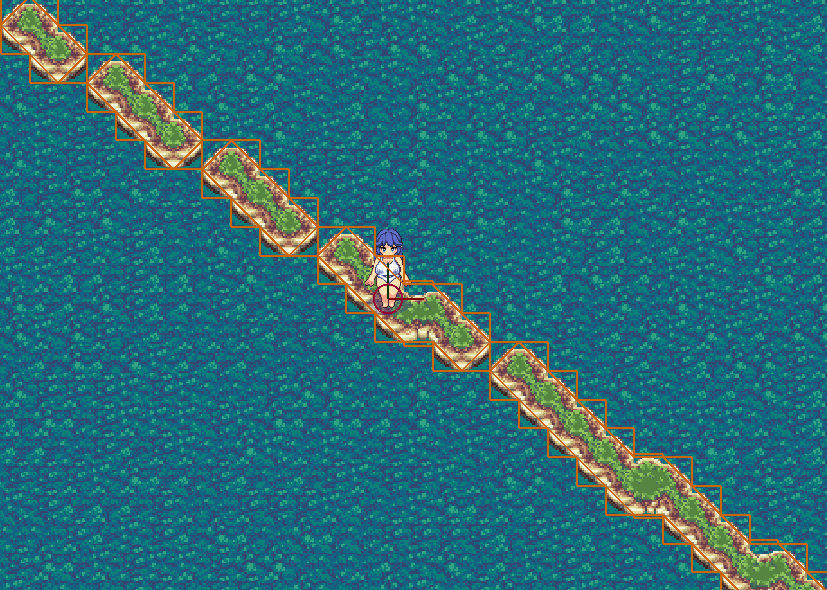

Now that a playable character is in place I had to add collision boxes. This was already a bit of a pain and showed me that the system I had in place was kinda ass. Determining where to place collision boxes is pretty easy, you just check that for each tile the 3x3 bitmask contains both grass and water (if that is the case, then we have an edge).
The real problem was debugging this. I didn't create any debugging tools (even to this day). Don't ask why.
I gotta say I really like how the islands look now, I used two noise maps and cheaply overlay them to create a slightly more interesting pattern.
I think the islands should be a bit bigger as it's pretty unrealistic for islands to pop up the way they do here, at least not for this size. The problem with bigger islandes is that the player would rarely see water and it would look a lot more monotonous when playing. This is most likely a limitation of my game size. In a big open world game this would be less of an issue I think.
Path Generation
Now we are getting into the more spicy generation part. One thing I absolutely wanted to implement in the game was paths. This doesn't sound too terribly complicated at first, I mean we can already generate an entire ocean afterall, but implementing paths was a huge challenge.

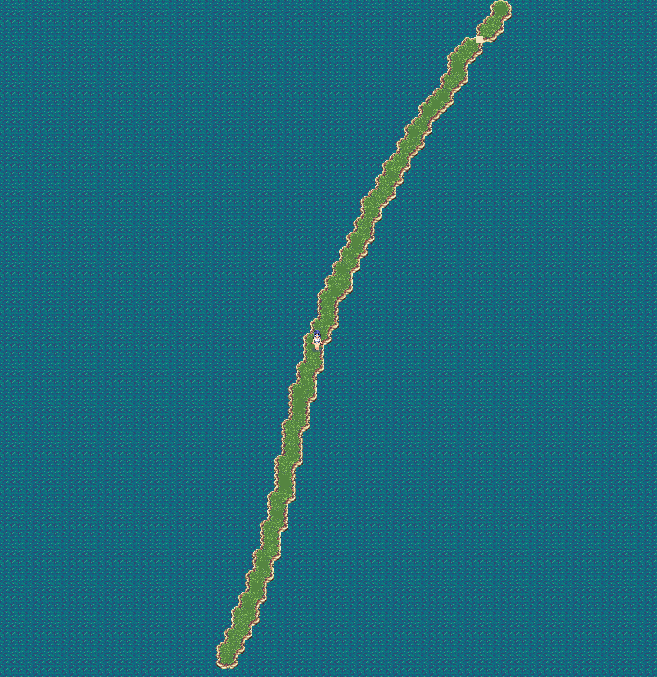

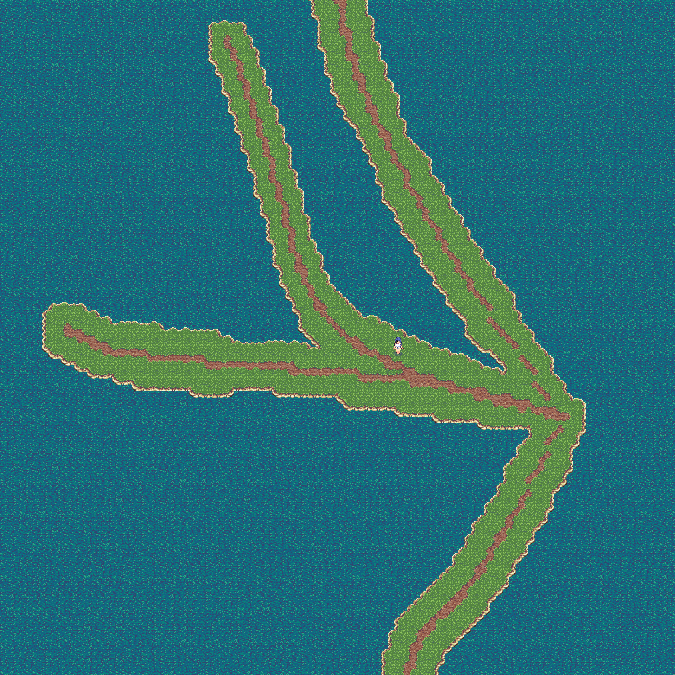

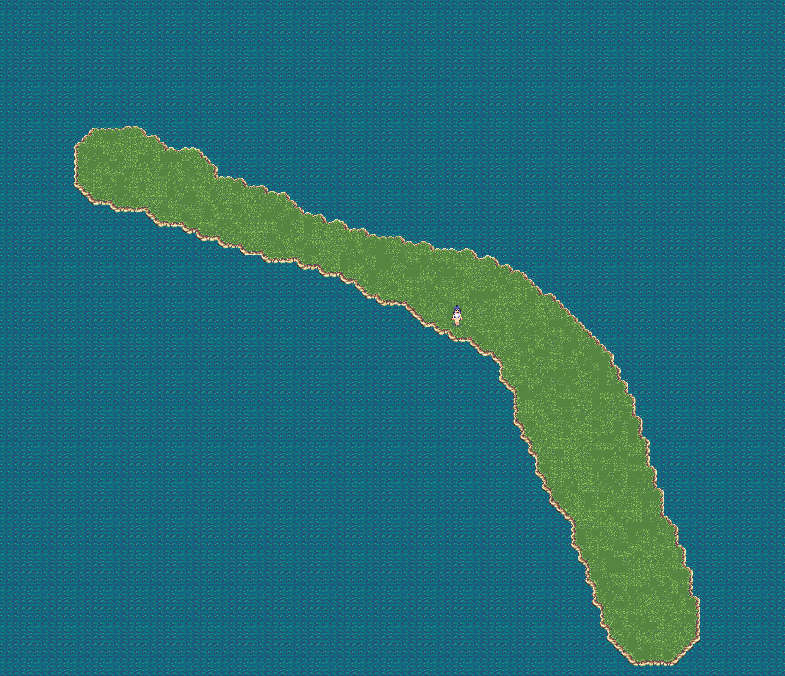

I implemented a basic system that takes two points and creates a path with a bit of a curvature using Bezier curves. One big problem I faced was that I couldn't exactly figure out how to generate the paths so that they are always on top of grass and not just go over the ocean. The issue is that I didn't have any guarantee that two points are even on the same island and thus connectable. To fix this I just opted to overwrite any water tile to grass tile near the paths.

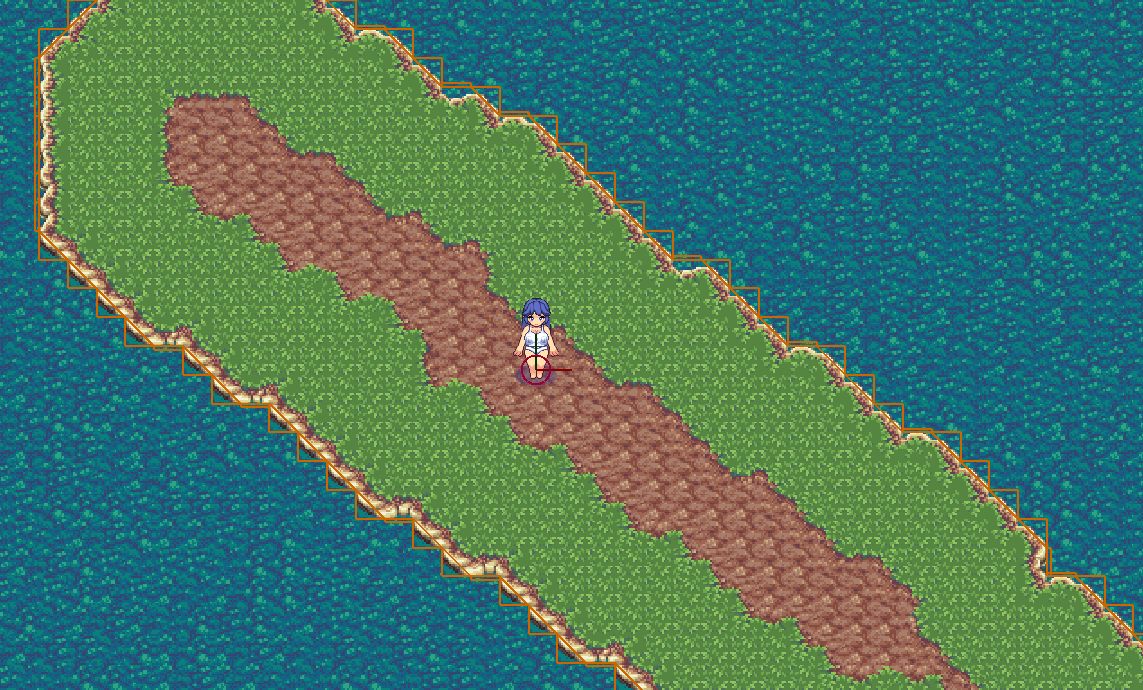

I also figured I would give the path a dynamic width so that it isn't completely uniform.
Implementing the paths was already a big challenge,
but only now did I realize the huge downsize of a 3x3 bitmask.
3x3 bitmasks are pretty easy to implement and intuitive.
However it also means that you need 2^8 = 256
different tiles to map every single possible tile combination.
256! The tileset I used had 16 tiles...
I remembered hearing something about 2x2 bitmasks and
searched a bit on how to implement those until I found
this talk.
Dualgrid is the solution.
Instead of each tile having 8 neighbhors,
we instead create a second grid and shift it by half a grid cell
and as a result only end up with 4 neighbhors.
What does that mean for the number of tiles we need?
Well, it's 2^4 = 16 tiles now, nice!
This does of course also have drawbacks (as there are no solutions, only trades offs). Firstly, this makes the backend slightly more complex. This is practically not noticable. But secondly, and more importantly, we aren't able to map our bitmap grid that tells us if a cell is water or grass directly to the rendered grid. Yes, we have the neighbhoring tiles, but it's not obvious at all how we map these two.
It took me some trial and error to implement certain things after this change and it makes future features a lot harder, for example the collisions don't work anymore, checking the edges will lead to false positives now. This means I have to rewrite the collisions entirely, however it also means I have an opportunity to improve on them.
The 2x2 bitmask dual grid system is nonetheless extremely worth it. Implementing paths is a bit tricky because of it, but it means that we can generate any combination of tiles and don't need to worry about our algorithm putting tiles next to each other that aren't covered by the tileset. Having a slightly more complex backend is definitely worth it.

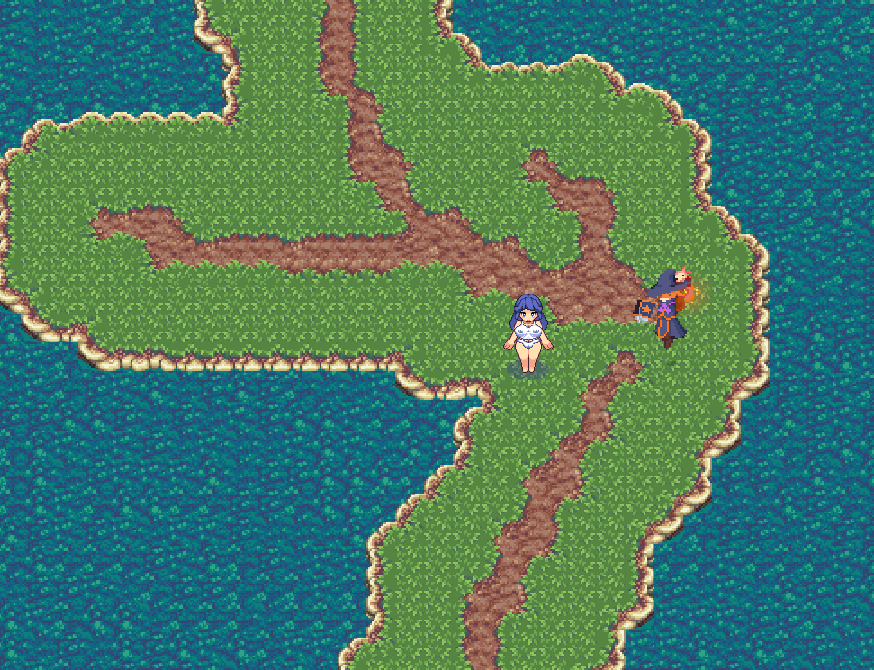

Next I placed the path tiles along each generated path with a given width.

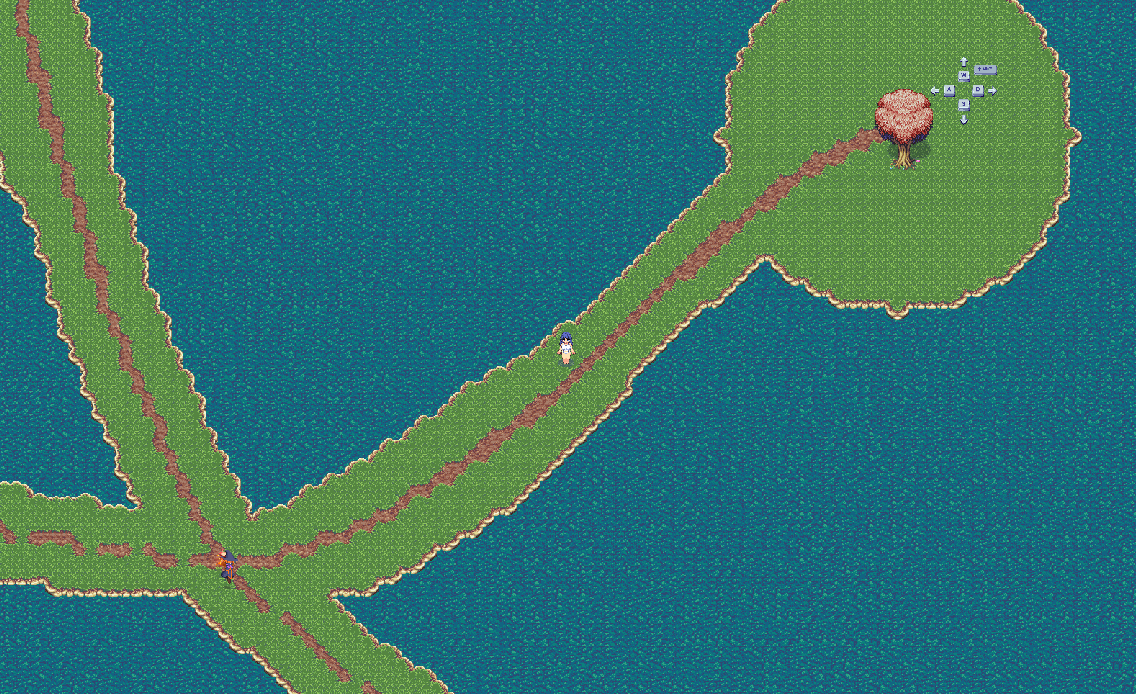

I really like how the bezier curves make the connected points look much more interesting. It's so simple yet so effective.
Next I experimented with terrain generation a bit. I didn't exactly know how to integrate the water to the paths. I thought that perhaps some ponds or similar smaller bodies of water would work best here, but I would have also liked to have bigger seas.
Another edge case I have to account for: The area around the spawning position of the player needs to be guaranteed to be grass in order to place the keyboard hints (otherwise it would look horrible).
It is these little things that make procedural world generation in a video game so difficult. We aren't just generating some world that should look realistic, we usually want to place things into this world too. These things have certain constrains that you need to make sure are met.

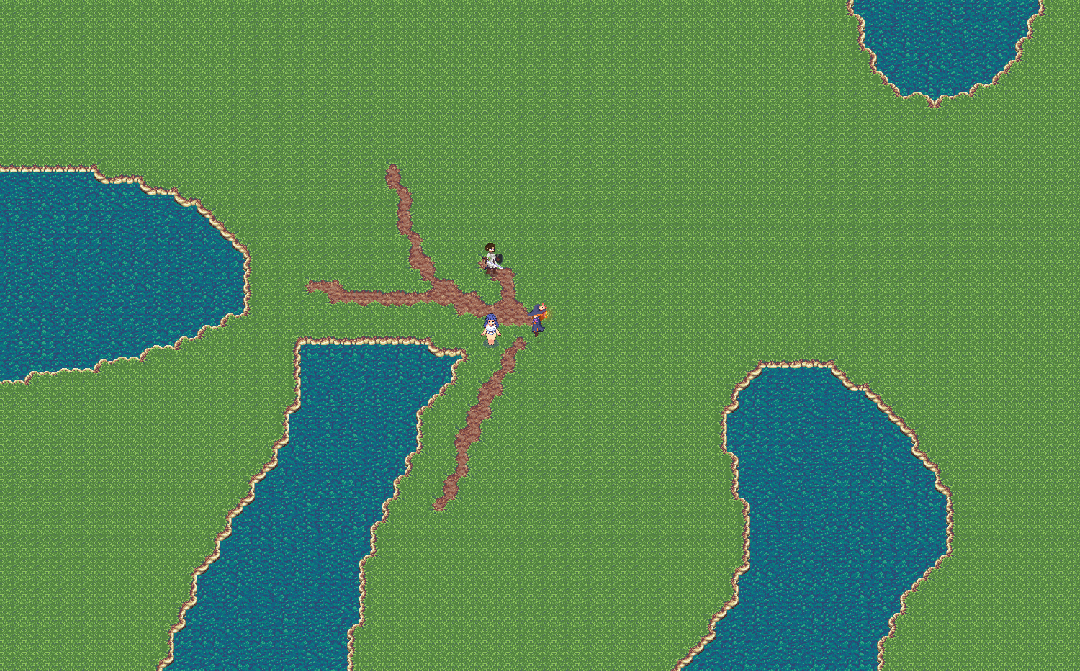

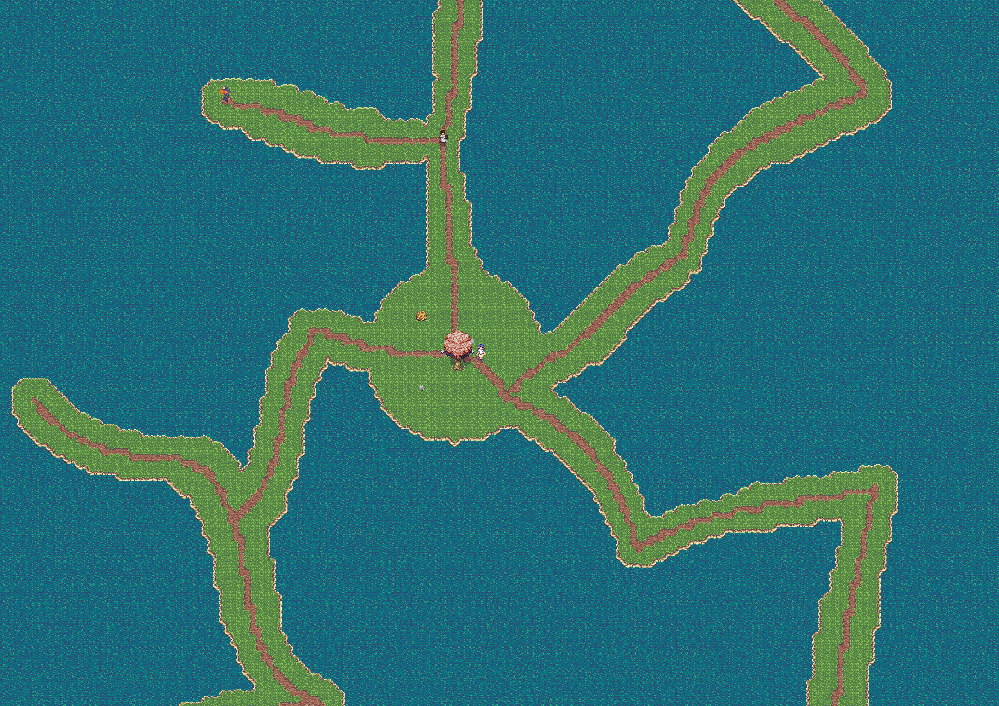

I wanted to have points around the spawn position of the player that are all at least a certain distance away. These points would be used as vertices in a graph and then connected via edges using Kruskals algorithm and then I could visualize the edges as paths.
Generating the points was the biggest challenge here. I used the Poisson disk sampling approach to generate a bunch of points which each were guaranteed to have a prespecified distance from one another.
Using these points we can place our points of interest there (in this case NPCs the player talks to). But this could easily have been cities or anything else on any kind of scale.
Flora And Fauna

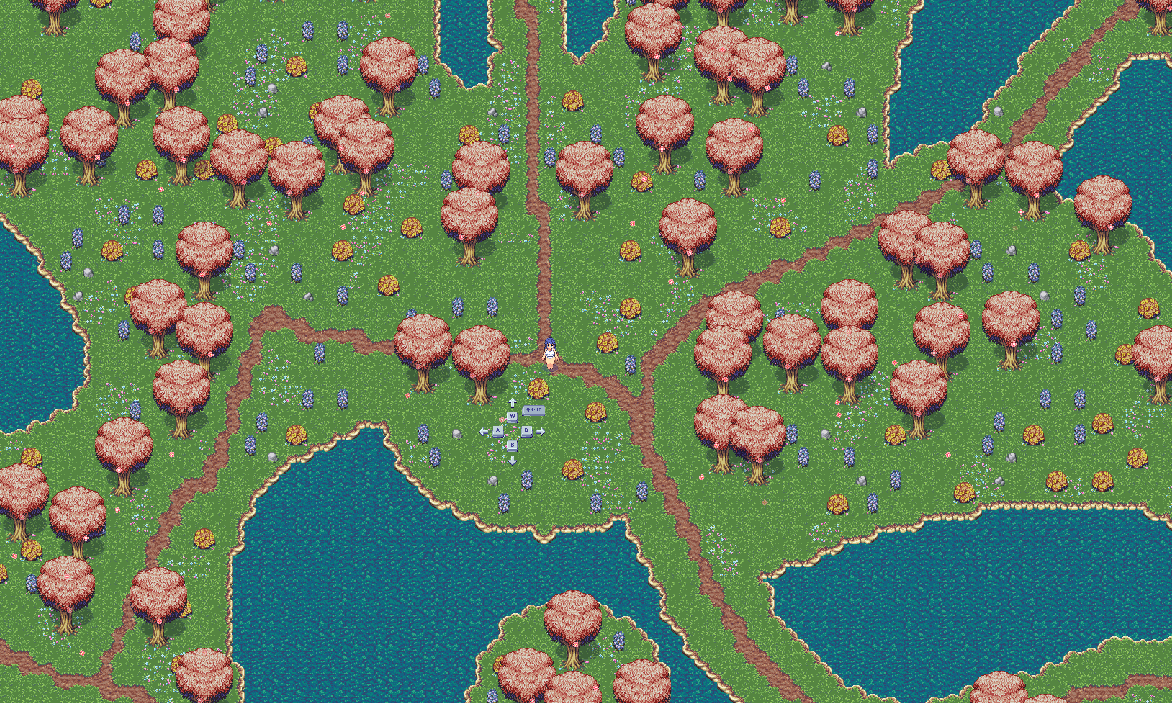

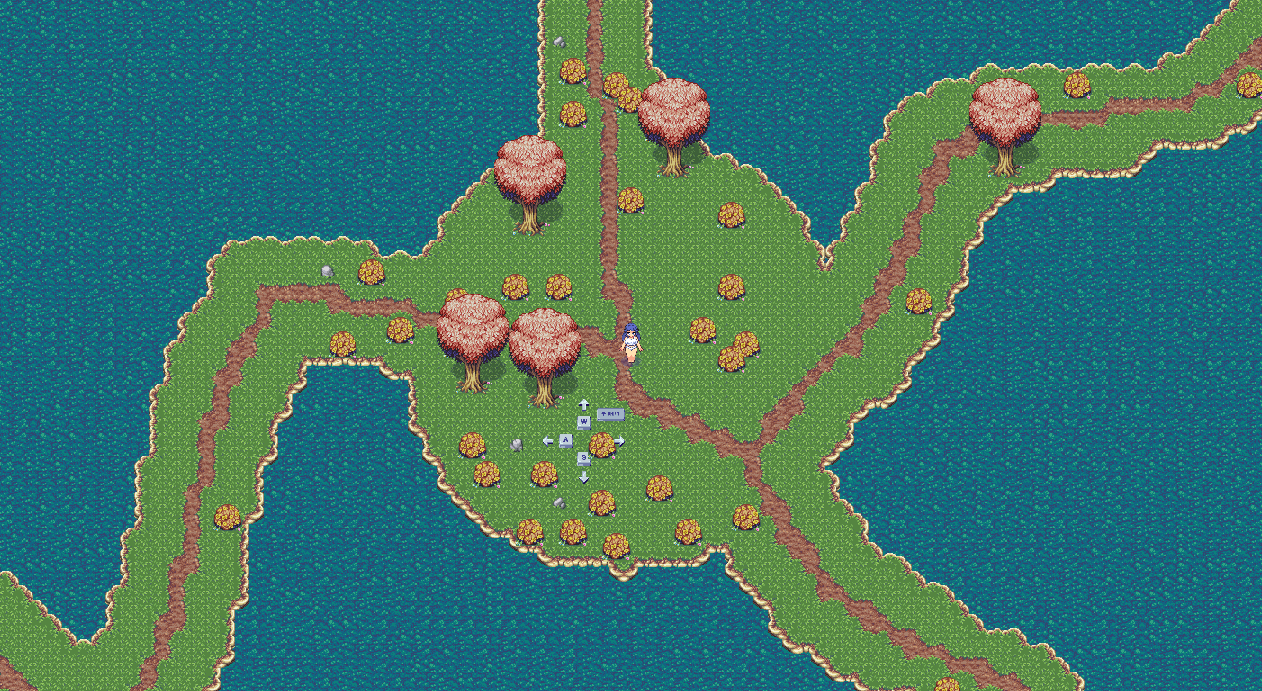

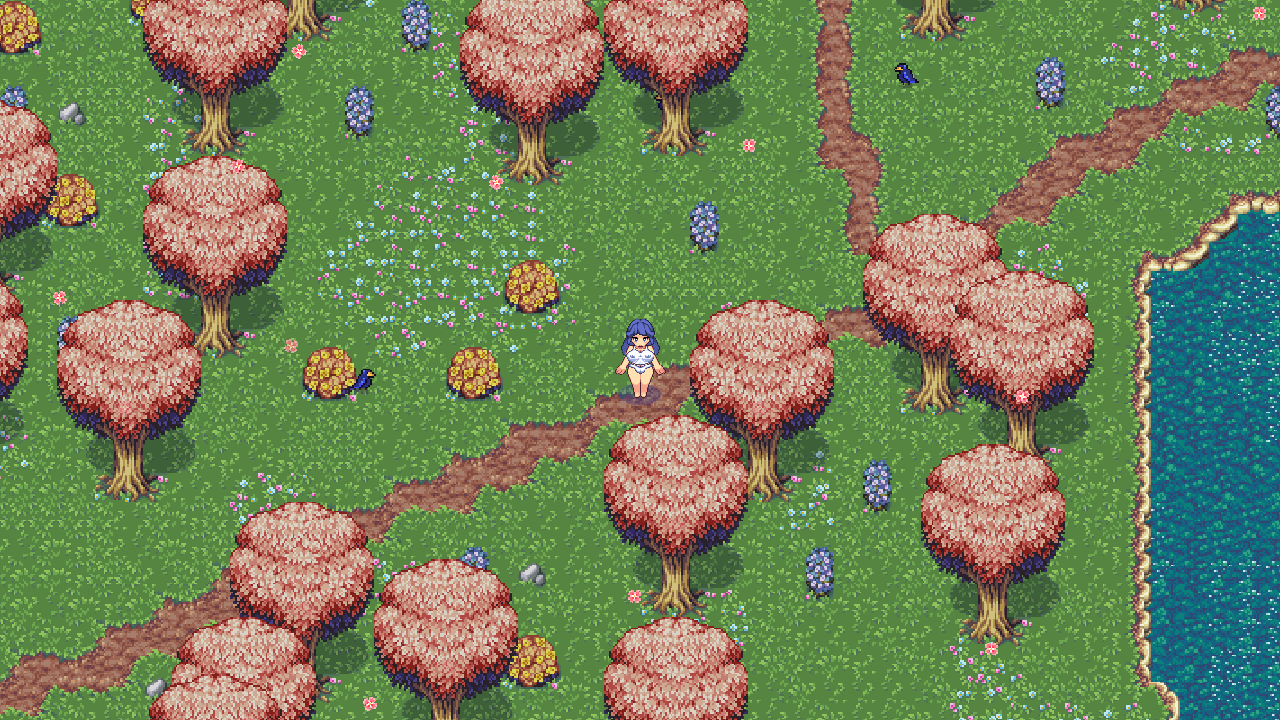

I got sick of looking at this empty map so decided it was time to add some flora. I used the same poisson disk sampling to make sure all the vegetation is at least a certain distance apart from one another. It's a bit more complicated in this case though, as we have variable radii (the trees must be further away from other trees then the bushes to other bushes etc.). This algorithm doesn't work perfectly, but I am not competent enough to make it work better then its current state.

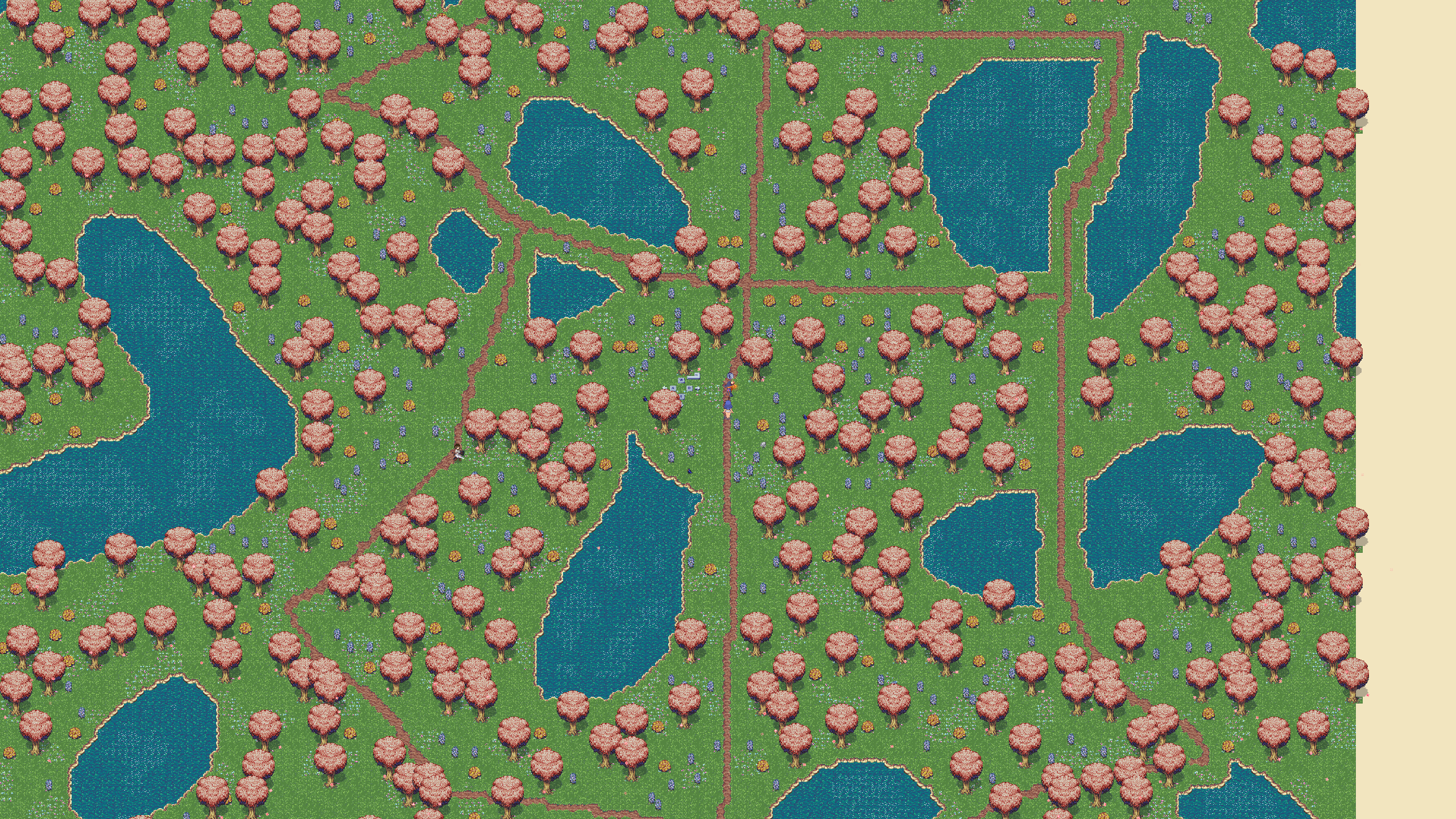

Next I filled the map with grass and figured out how to integrate the bodies of water.
I noticed a nasty visual issue with the Y-Sort. The shadows of the trees weren't working correctly. Fixing this was a huge pain and my current solution is also more of a work-around than an actual fix but it works for this game.

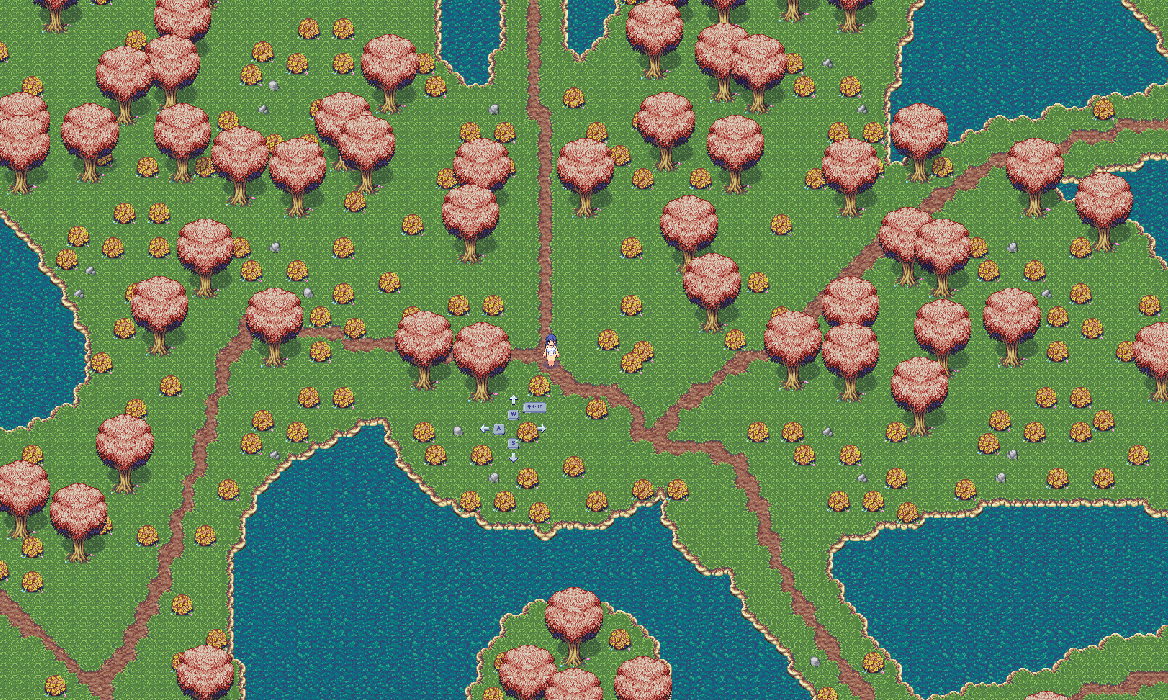

I played a bit with the hyper-parameters of the generation process and made sure the bushes could not spawn on top of the path. Again, another constraint you need to make sure is in place in order to properly place things.

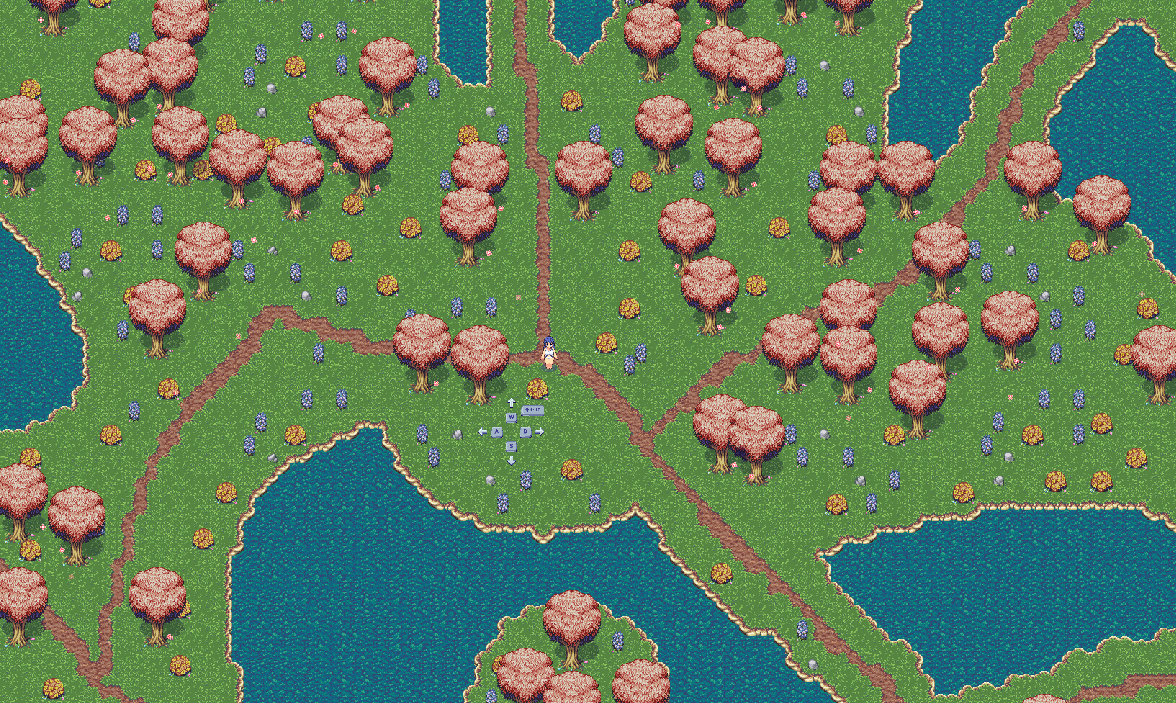

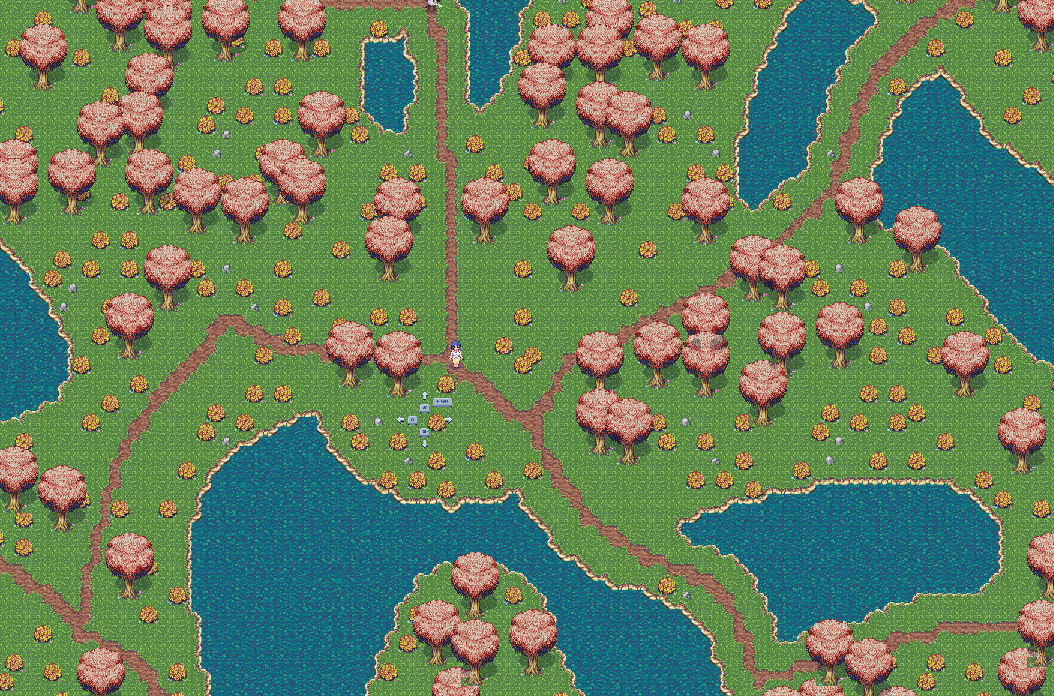

I added patches of flowers to make the scene more interesting. I really think it adds a lot. The implementation is very similar to how the water is generated and was pretty straightforward.

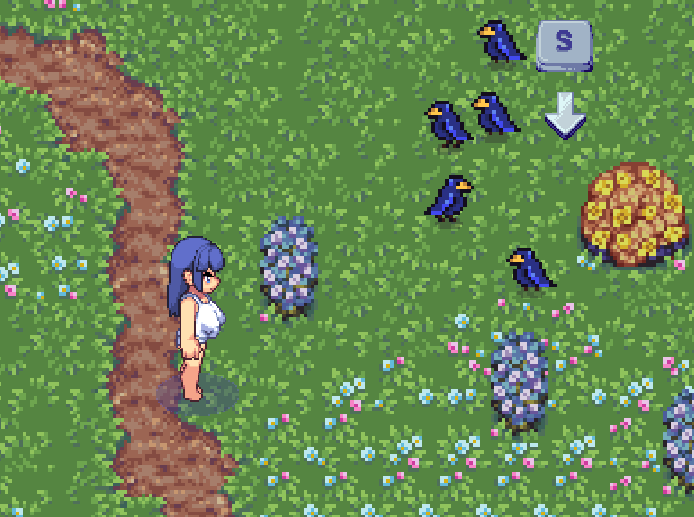

I thought it was kind of lifeless so I added some fauna (birds in this case). I actually meant for this to be a little reward for getting this far with the world generation and thought this would only take around 2 hours... it didn't, it took me 2 weeks :') Worth it though, the birds are awesome.

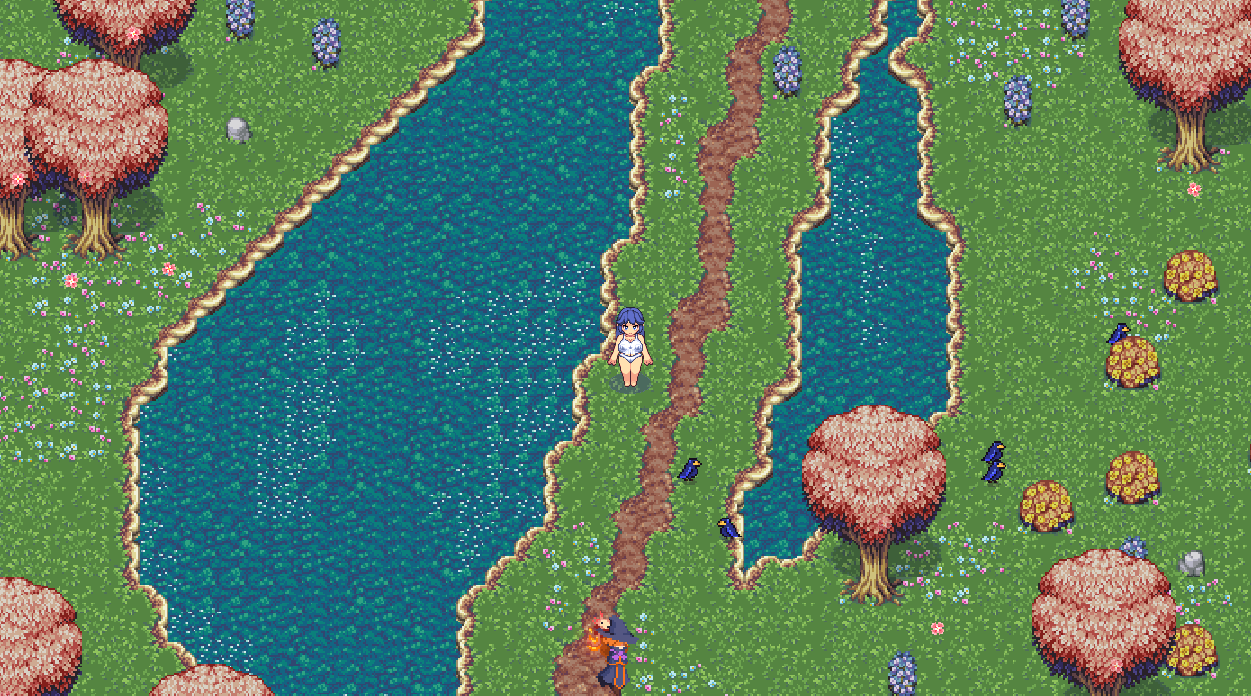

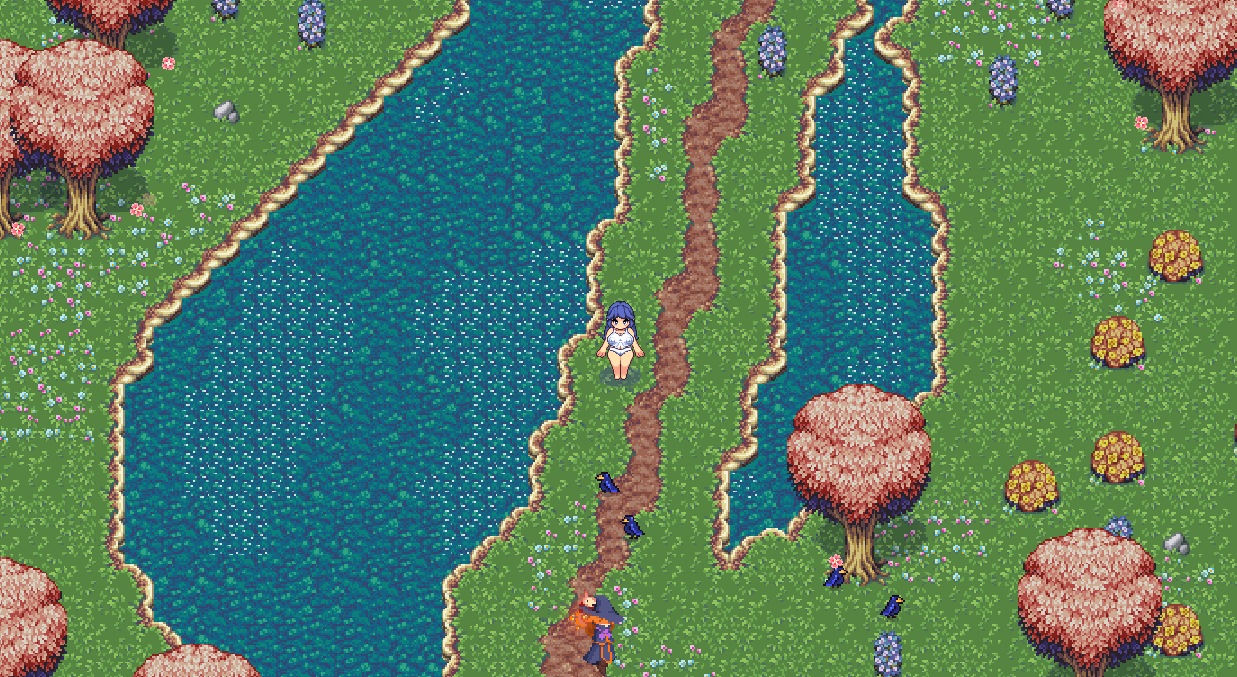

The tileset I used also had these nice (and most importantly easy to implement) water sparkle animations. I generate them similarly to the the patches of flowers, it adds a lot to the otherwise boring looking water.
I then added a bit of variety to the water sparkling tiles and again, little effort big reward. The water sparkles looked too uniform before and look more interesting now.
Finally I wrote a little algorithm that connects the dead ends into loops. This runs after Kruskals algorithm and is basically just checking for the nearest free vertex. I adds a lot though, as the player doesn't need to backtrack anymore.
Conclusion
That's all! My first attempt at procedural world generation. My implementation is definitely not the prettiest and it still has quite a few issues. That being said, I am very pleased with the result and really like the atmosphere it creates.
One thing I would definitely change next time is to write propper debugging tools. Just a simple visualization of the bitmap grid would have been useful in so many situations.
I hope this was interesting and helpful. I will most likely revisit this blog the next time I try my hands on procedural world generation. Until then.
